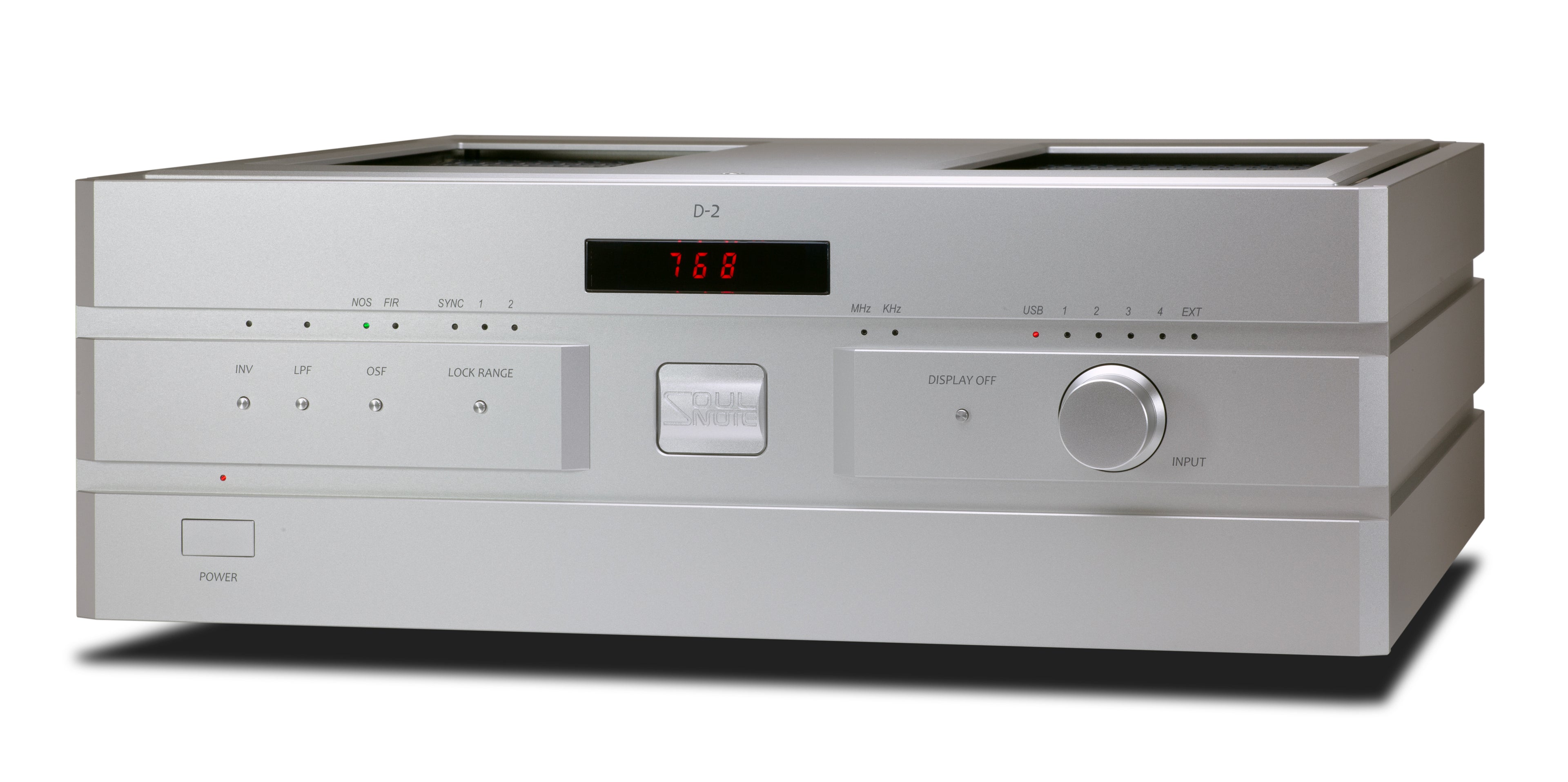

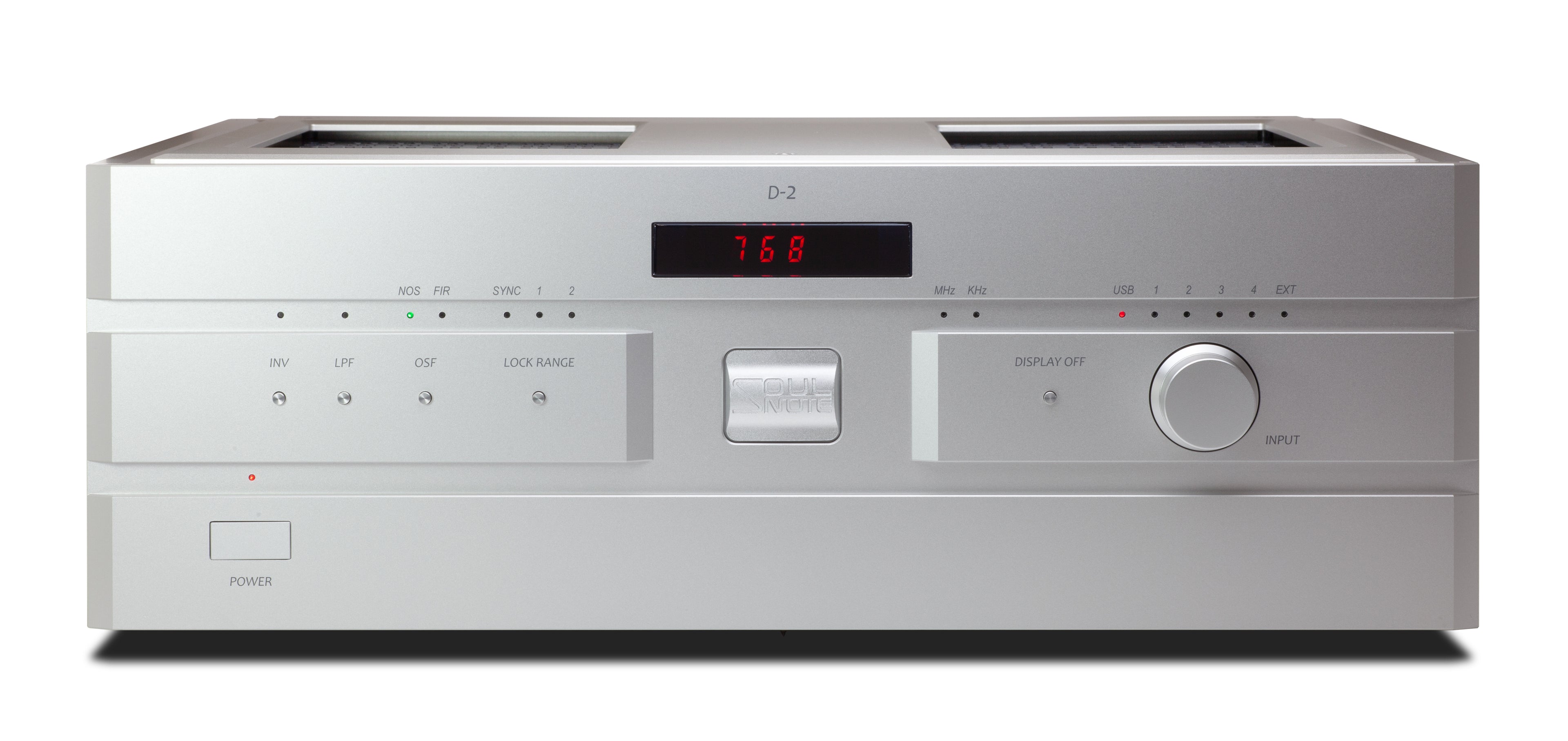

Soulnote D-2 Ver 2 D/A Converter

Regular price: $9,085.00 USD
Regular price
Sale price: $9,085.00 USD

Color: Silver

Special order item

Free shipping

Ships from manufacturer within 28 days

Description

Soulnote D-2 version 2 is a discrete, non-NFB DAC voiced for natural timing and space. It runs four ES9038PRO chips in dual-mono, clocks them with TI LMX2594 DDS, offers NOS mode, and now accepts a 10 MHz external reference via SMA for direct X-3 connection. Digital inputs include USB, dual coaxial, and dual AES/EBU; USB supports PCM to 768 kHz and DSD to 22.6 MHz. With short, fully discrete analog stages, Soulnote D-2 ver2 drops cleanly into reference systems.

Specifications

USB formats: PCM; DSD DoP v1.1 and ASIO native
Coax/AES formats: PCM; DSD DoP v1.1
Max sample rate USB: 768 kHz PCM; 22.6 MHz DSD
Max sample rate Coax/AES: 192 kHz PCM; 2.8 MHz DSD64 DoP v1.1
Digital inputs: USB Type B; 2× coax SPDIF; 2× AES/EBU
External clock input: 10 MHz SMA 50 Ω
Analog outputs: 1× XLR; 1× RCA
Analog output level: 6.2 Vrms XLR; 3.1 Vrms RCA
Frequency response: 2 Hz–120 kHz (+0/−1 dB)
S/N: 110 dB
THD: 0.04% (NOS, 44.1 kHz)
Analog filter: 1st order passive
Power consumption: 32 W (J60065)
Dimensions: 430 W × 160 H × 405 D mm
Weight: approx. 17 kg
Accessories: Spikes, power cable

More information View images

Soulnote D-2 v2

Soulnote D-2 v2 is a discrete, non NFB DAC voiced for natural timing, spacious imaging, and lifelike microdynamics, with advanced clocking and a short analog path.

Design and engineering

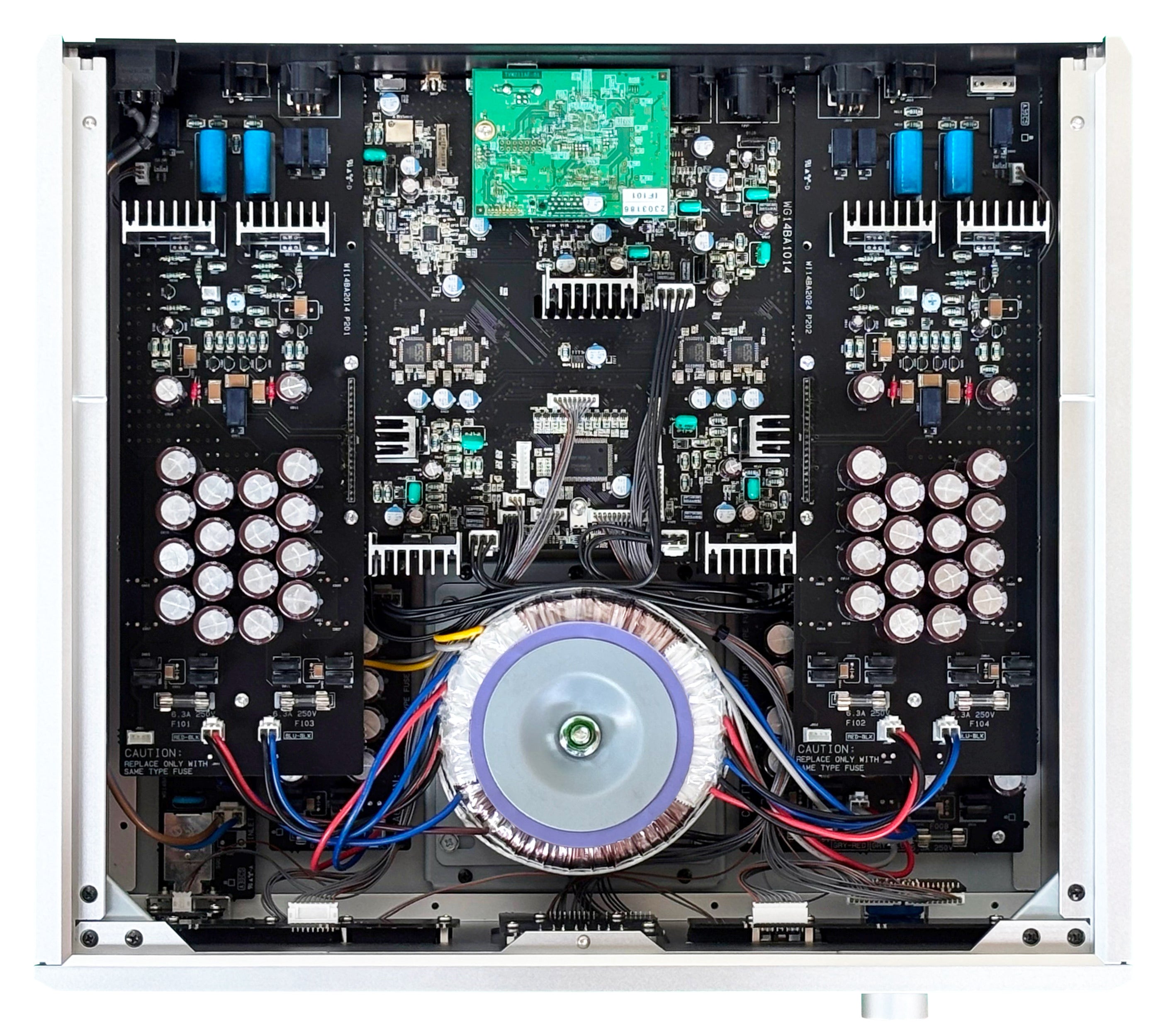

A dual mono converter layout with discrete I/V and a passive first order output network keeps phase behavior simple and preserves transient edges. Mechanical grounding and internal layout follow Series 3 learnings to minimize vibrational and electromagnetic interaction.

Connectivity and control

Multiple digital inputs cover computer audio and transports. The external 10 MHz reference input enables system level clocking with a high grade master. NOS mode provides a filter light option for those who prioritize immediacy and leading edge definition. Front panel selection is direct and repeatable.

What distinguishes it

A clear, energetic presentation with strong spatial focus from a discrete non NFB analog stage and careful mechanical control, plus the ability to synchronize to a studio grade master clock.

Who it is for

Listeners who want a highly revealing, time coherent DAC that can scale with master clocking and careful system tuning.

In the box

Main unit, AC power cable, footers, documentation.
