Soulnote A-0 Ver.2 Integrated Amplifier

Soulnote A-0 ver.2 Integrated Amplifier

The Soulnote A-0 ver.2 is a fully discrete, no-negative-feedback integrated amplifier that delivers 10 watts per channel into 8 ohms, with an integrated headphone amplifier and flexible pre-out functionality. Born from the engineering principles that define Soulnote's flagship Series 3 amplifiers, the A-0 ver.2 is a deliberate exercise in restraint: by capping output power at 10 watts, the design is, according to Soulnote, able to concentrate entirely on circuit quality rather than managing large power reserves. It is the sole integrated amplifier in Soulnote's Series 0 and represents the most accessible entry point into the brand's no-feedback, discrete amplifier philosophy.

Quality Over Quantity: The Case for 10 Watts

Soulnote's approach to the A-0 ver.2 inverts a common assumption in amplifier design. Rather than prioritizing headroom and maximum power, the engineering team chose to concentrate entirely on quality by intentionally limiting output to 10 watts per channel. This constraint allows the output stage to operate consistently within its optimal range. Soulnote's stated goal is an amplifier that prioritizes control, timing, and the resolution of fine musical detail over raw output power.

Soulnote recommends the A-0 ver.2 for use with efficient loudspeakers, where its 10-watt output is entirely capable of producing realistic sound levels in a typical listening room.

Circuit Architecture

Fully Discrete, No-Negative-Feedback Design

The A-0 ver.2 employs a fully discrete circuit throughout, with no negative feedback anywhere in the signal path. Negative feedback, which is used in the vast majority of audio amplifiers to correct signal deviations by feeding back a portion of the output, can improve measured distortion figures but, in the view of Soulnote's chief designer Hideki Kato, tends to slow transients, suppress micro-detail, and rob music of its natural energy. The A-0 ver.2 takes the opposite path: direct signal transmission from input to output, with no corrective feedback loop intervening.

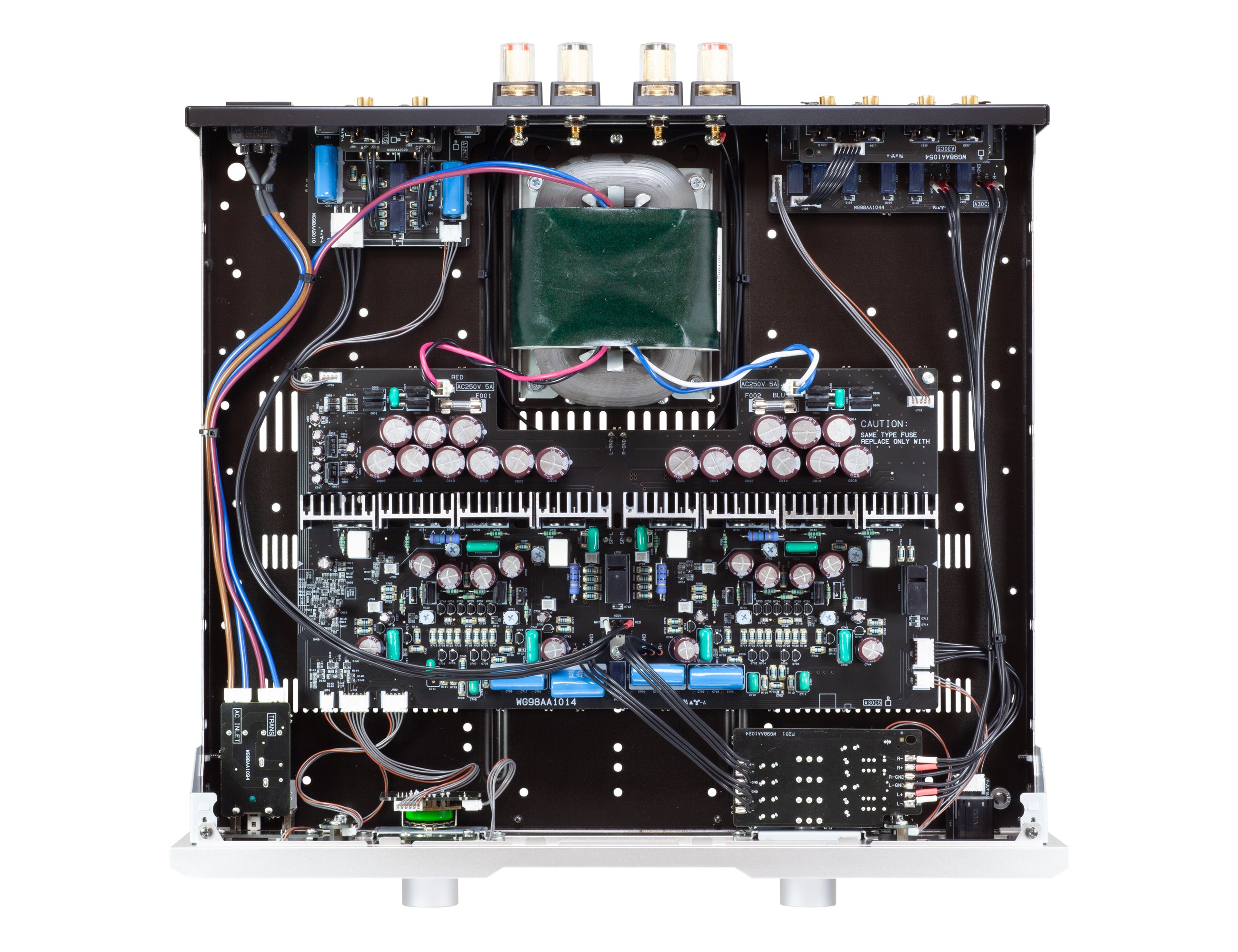

The circuit topology is deliberately simple. A selector and volume control feed directly into a power amplifier stage, with nothing extraneous in between. Soulnote describes this configuration as identical in architecture to the A-3, the company's top-of-the-line integrated amplifier. The difference lies in output power, not in the fundamental approach to amplification.

Single Push-Pull Output Stage with TO-220 Transistors

The output stage of the A-0 ver.2 uses TO-220 package transistors in a single push-pull configuration. These transistors were chosen for their low collector-base capacitance and excellent high-frequency performance. Low collector-base capacitance translates directly to faster response and reduced phase shift at high frequencies, which is a significant factor in the amplifier's measured frequency response extending to 350kHz at the speaker output and 400kHz at the headphone and pre-out outputs. The single push-pull topology is a relatively simple output stage configuration, consistent with Soulnote's broader preference for minimal circuit complexity.

Four-Stage Darlington Configuration

Despite its modest 10-watt output rating, the A-0 ver.2 employs the same four-stage Darlington transistor configuration used in the A-1 ver.2 and A-2 ver.2, Soulnote's higher-output integrated amplifiers. A Darlington pair uses cascaded transistors to achieve high current gain, and the four-stage implementation found here is typically associated with amplifiers designed for significantly more power. Soulnote applies it here to ensure that even at low listening volumes, the amplifier maintains strong current delivery, producing what the manufacturer describes as a palpable sense of drive and air-pressure change.

Redesigned Bias Circuit

One of the key improvements in the ver.2 is a completely redesigned bias circuit. Bias refers to the quiescent operating point of the output stage, the small standing current that flows through the output transistors even in the absence of a music signal. A stable, well-designed bias circuit reduces thermal drift and background noise, lowering the amplifier's noise floor. In the A-0 ver.2, the new bias circuit replaces the LED-based bias circuit of the original A-0 and brings a significant improvement in signal-to-noise ratio, measured at 115dB via IHF A-weighting. Soulnote attributes this improvement to greater audibility of fine detail and low-level dynamics.

Mechanical Design Philosophy

Non-Fixed Top Cover

In a deliberate departure from conventional practice, the top cover of the A-0 ver.2 is not bolted down. Soulnote takes the position that rigidly clamping the chassis panels introduces a form of mechanical loading that can suppress what the company calls the natural sound field of the amplifier. The loosely fitted top cover is allowed to resonate freely rather than transferring energy back into the chassis in unpredictable ways. This is a consistent design choice across the Soulnote lineup and reflects the broader philosophy of managing vibration through thoughtful mechanical engineering rather than damping.

Direct Mechanical Grounding Construction

The A-0 ver.2 uses a three-point support system with spike feet, and the chassis is designed so that one of those spike points is positioned directly beneath the transformer. This arrangement allows transformer-generated vibration to be conducted out of the chassis as directly as possible, rather than being dispersed through the chassis structure where it could interact with sensitive circuit components. Soulnote refers to this as Direct Mechanical Grounding Construction, and it is a refinement shared with the brand's more expensive models. The spike feet included with the amplifier can be substituted for the standard rubber or pole feet, allowing listeners to tune the mechanical interface between the amplifier and its support surface.

Pre-Amplifier and Headphone Capabilities

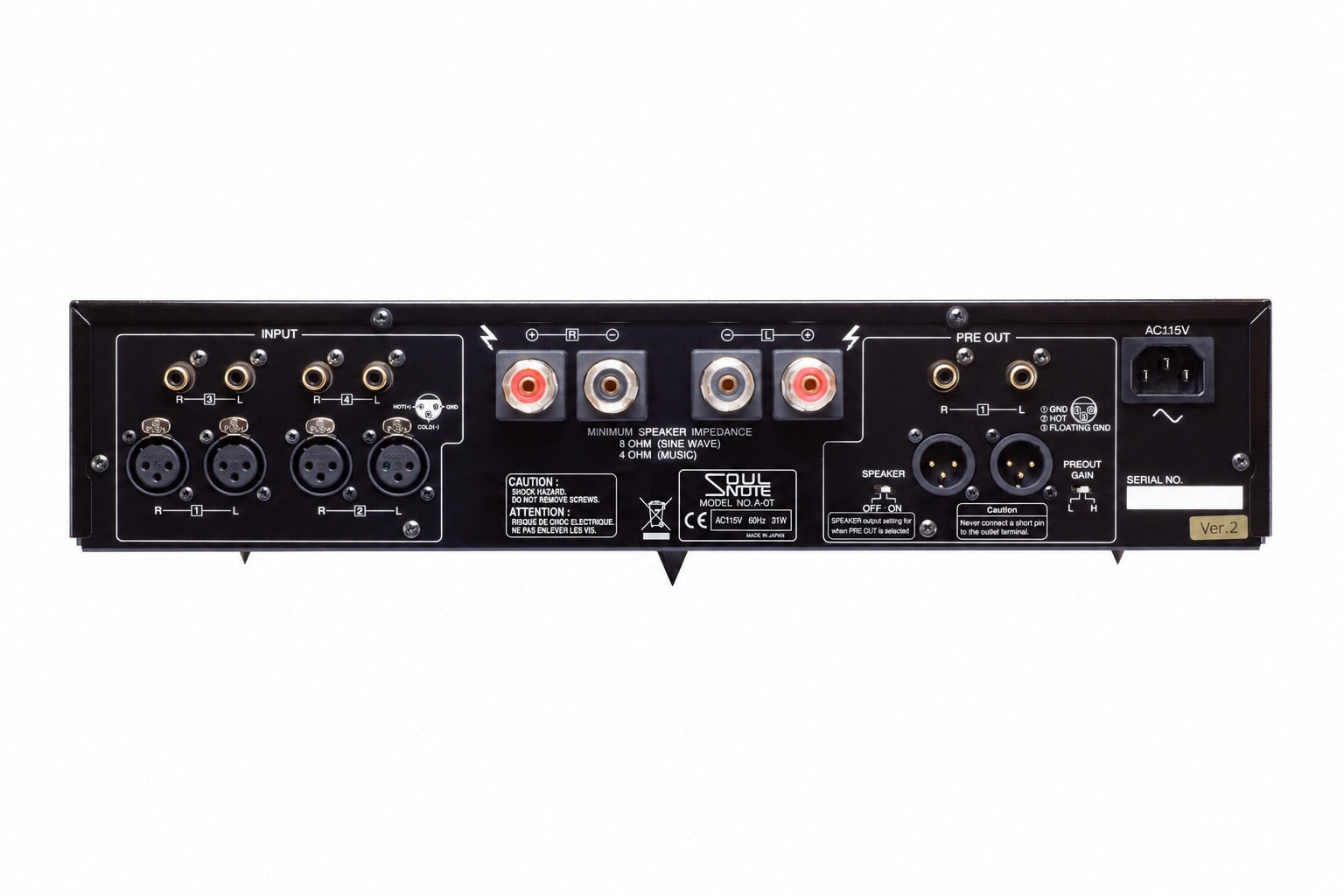

The A-0 ver.2 is more versatile than a simple integrated amplifier. Its pre-out section offers both RCA and XLR outputs and can be configured in multiple ways. In High mode, the pre-out outputs the full loudspeaker signal without attenuation, making it suitable for driving a power amplifier directly with maximum voltage swing. Low mode attenuates the output for easier level matching with external power amplifiers, active loudspeakers, or a subwoofer. When the A-0 ver.2 is used as a standalone preamplifier, the user can select whether to keep the loudspeaker output active or disable it.

The XLR pre-out uses a floating ground configuration, with Pin 1 as ground, Pin 2 as hot, and Pin 3 as floating ground. This arrangement preserves the noise-cancellation benefit of a balanced connection. Soulnote notes that the XLR pre-out pairs particularly well with their own non-shielded balanced cables, such as the SBC-1 or RBC-1.

The built-in headphone amplifier delivers 3.0 watts into 32 ohms, drawing from the same discrete, no-feedback output stage that drives the loudspeaker terminals. It benefits directly from the redesigned bias circuit and the measured 115dB S/N ratio of the main amplifier stage.

The A-0 ver.2 in the Soulnote Lineup

Soulnote organizes its products into four series numbered 0 through 3, with Series 3 representing the flagship range and Series 0 the entry point. The A-0 ver.2 is the only integrated amplifier in Series 0 and serves as the most direct expression of the Soulnote design philosophy in its most accessible form. Above it, the A-1 ver.2 in Series 1 and the A-2 ver.2 in Series 2 deliver higher output power, and the A-3 in Series 3 represents the company's ultimate statement in integrated amplifier design. All share the same non-feedback, fully discrete architecture and the same fundamental circuit topology. The A-0 ver.2 is the natural starting point for listeners curious about the Soulnote sound, and it is also a serious amplifier in its own right for those who listen primarily to efficient loudspeakers and value resolution and timing above raw power.

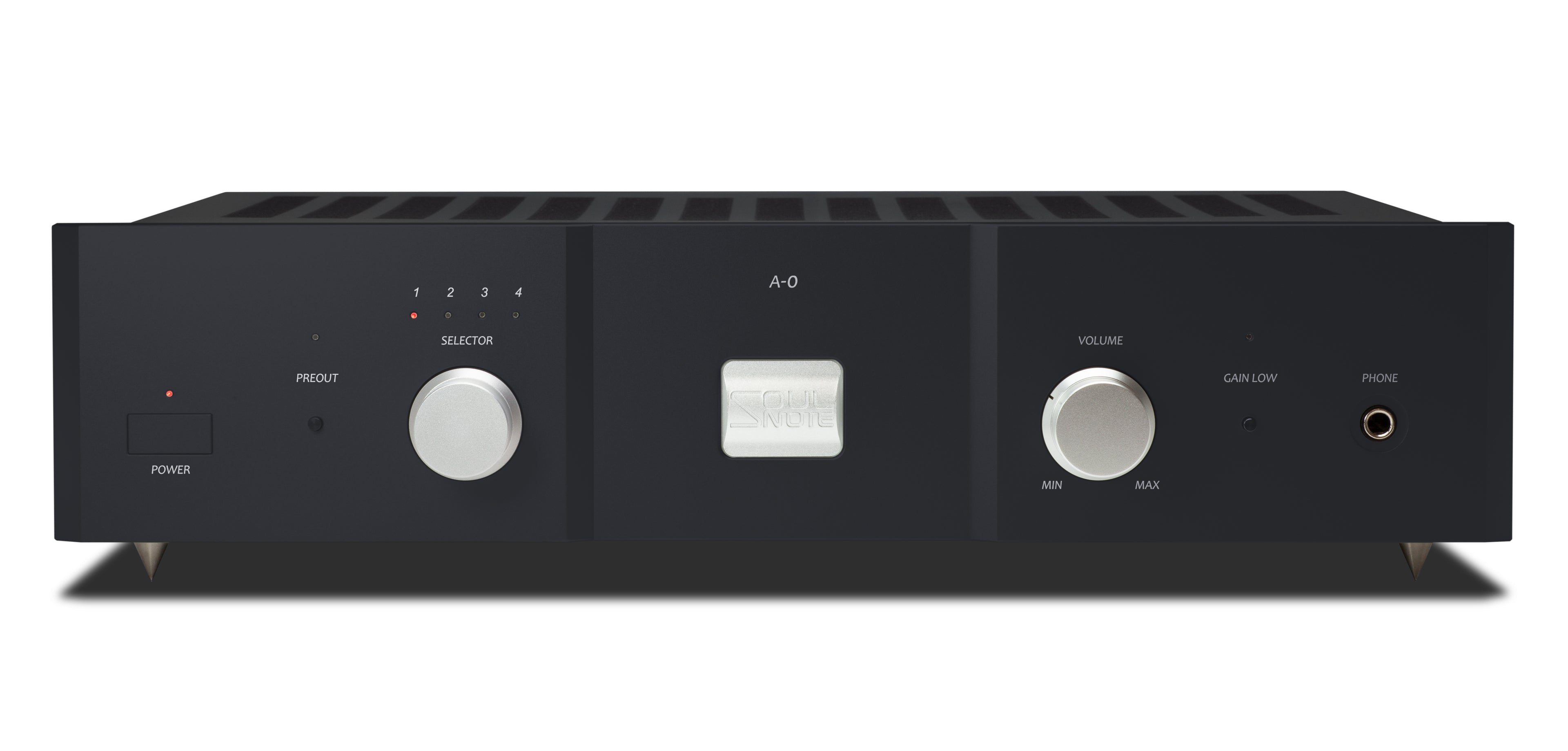

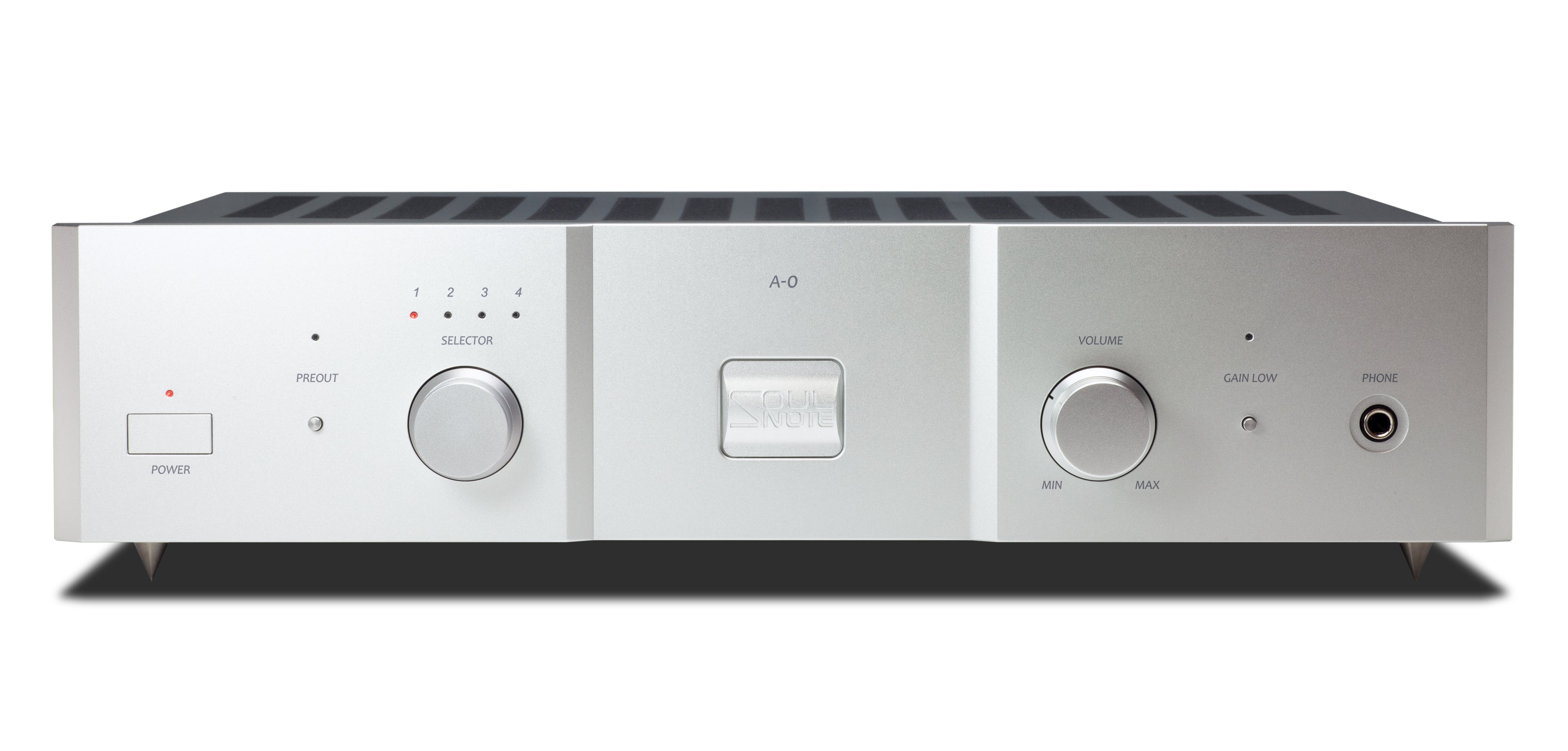

Available in Premium Silver and Premium Black, the Soulnote A-0 ver.2 is manufactured in Japan and ships with spike feet and a power cable. Its dimensions are 430 x 109 x 418mm and it weighs 8.0kg.
