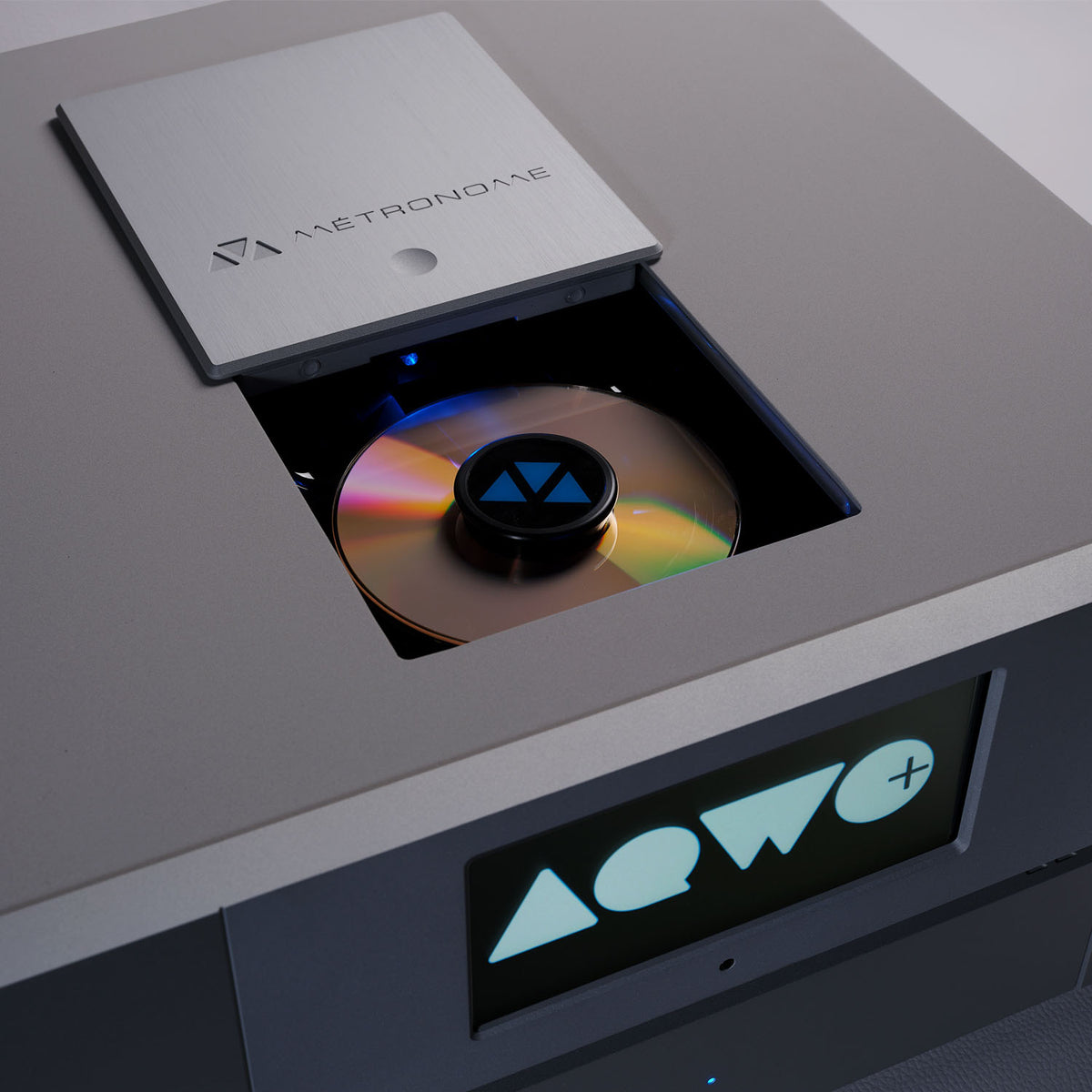

Metronome AQWO 2+ SACD Player with External PSU

Regular price: $37,600.00 USD
Regular price
Sale price: $37,600.00 USD

Color: Silver

Output Stage Solid State Vacuum tube

Free shipping

Description

Métronome AQWO 2+ is a hand-assembled French hybrid DAC, SACD/CD player and network streamer supplied with a separate power supply. It uses an ES9039MPRO converter with PCM and DSD up to DSD512, offers I²S, AES/EBU and S/PDIF outputs with resampling, and is Roon Ready with Qobuz Connect, TIDAL Connect, Spotify Connect, and Audirvāna support. A tube output is available as an option, and a 7-inch touchscreen handles control. The Métronome AQWO 2+ is the two-box version of the AQWO 2.

Specifications

Type: Hybrid DAC, SACD/CD player and network streamer (two-box design)
Available Finishes: Silver, Black
Power Supply: Separate external power supply unit
DAC Chip: ES9039MPRO
THD+N: -122 dB
Dynamic Range: S/N 137 dB
Supported Files: PCM and DSD up to DSD512 (x8) for conversion
Analog Outputs: RCA (100 Ω output impedance, 3 V max); XLR (150 Ω output impedance, 3 V max)
Digital Outputs: S/PDIF and AES/EBU (PCM 44.1 to 384 kHz / 32-bit; DSD64 to DSD128 DoP); I²S (PCM 44.1 to 384 kHz / 32-bit; native DSD64 to DSD256); resampling available
Digital Inputs: S/PDIF and AES/EBU (PCM 44.1 to 384 kHz / 32-bit; DSD64 to DSD128 DoP); Toslink (PCM 44.1 to 192 kHz / 32-bit; DSD64 DoP); USB (PCM 44.1 to 384 kHz / 32-bit; native DSD64 to DSD512); Streaming (PCM 44.1 to 384 kHz / 32-bit; native DSD64 to DSD256)
MQA: Renderer, 44.1 to 384 kHz / 32-bit
Wi-Fi: Dual band (2.4 and 5 GHz)
Ethernet: 1 x Gigabit (10/100/1000)
USB: 1 x USB 2.0 (device update); 1 x USB 2.0 (external storage)
Supported Protocols: DLNA/UPnP, Roon Ready, Audirvāna, Spotify Connect, TIDAL Connect, Qobuz Connect, Deezer, vTuner
Display: 7-inch touchscreen, 1024 x 600
Options: Tube output
Power Consumption: 48 W (standby 34 W)
Dimensions, Drive (L x H x W): 420 x 120 x 425 mm (16.5 x 4.7 x 16.7 in)
Dimensions, Power Supply (L x H x W): 420 x 85 x 425 mm (16.5 x 3.3 x 16.7 in)
Weight, Drive: 13.3 kg (29.3 lb)
Weight, Power Supply: 12.6 kg (27.8 lb)

More information View images

Métronome AQWO 2+

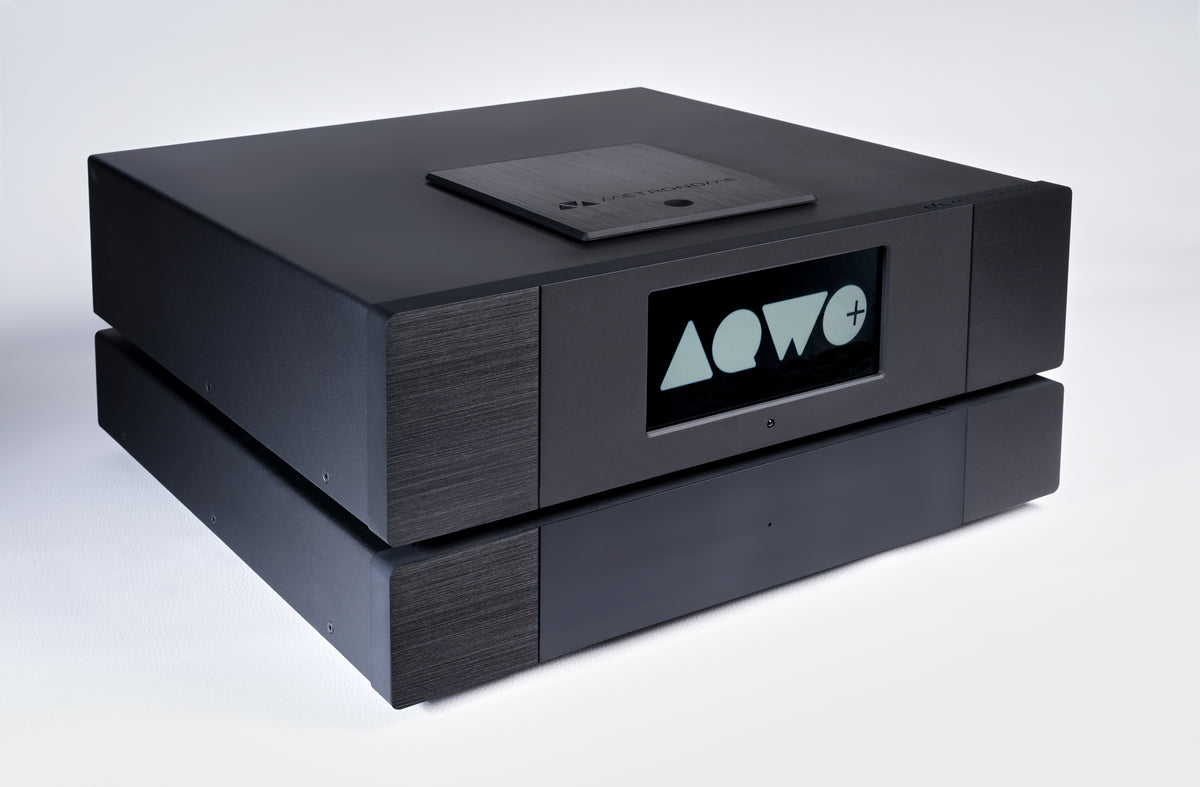

The Métronome AQWO 2+ is a hybrid DAC, SACD/CD player and network streamer built in France, supplied as a two-box design with a separate power supply. It carries the same functions as the AQWO 2 and moves the power supply out of the audio chassis, so the transport, converter and streamer work from an external supply. A tube output stage is available as an option.

Separate Power Supply

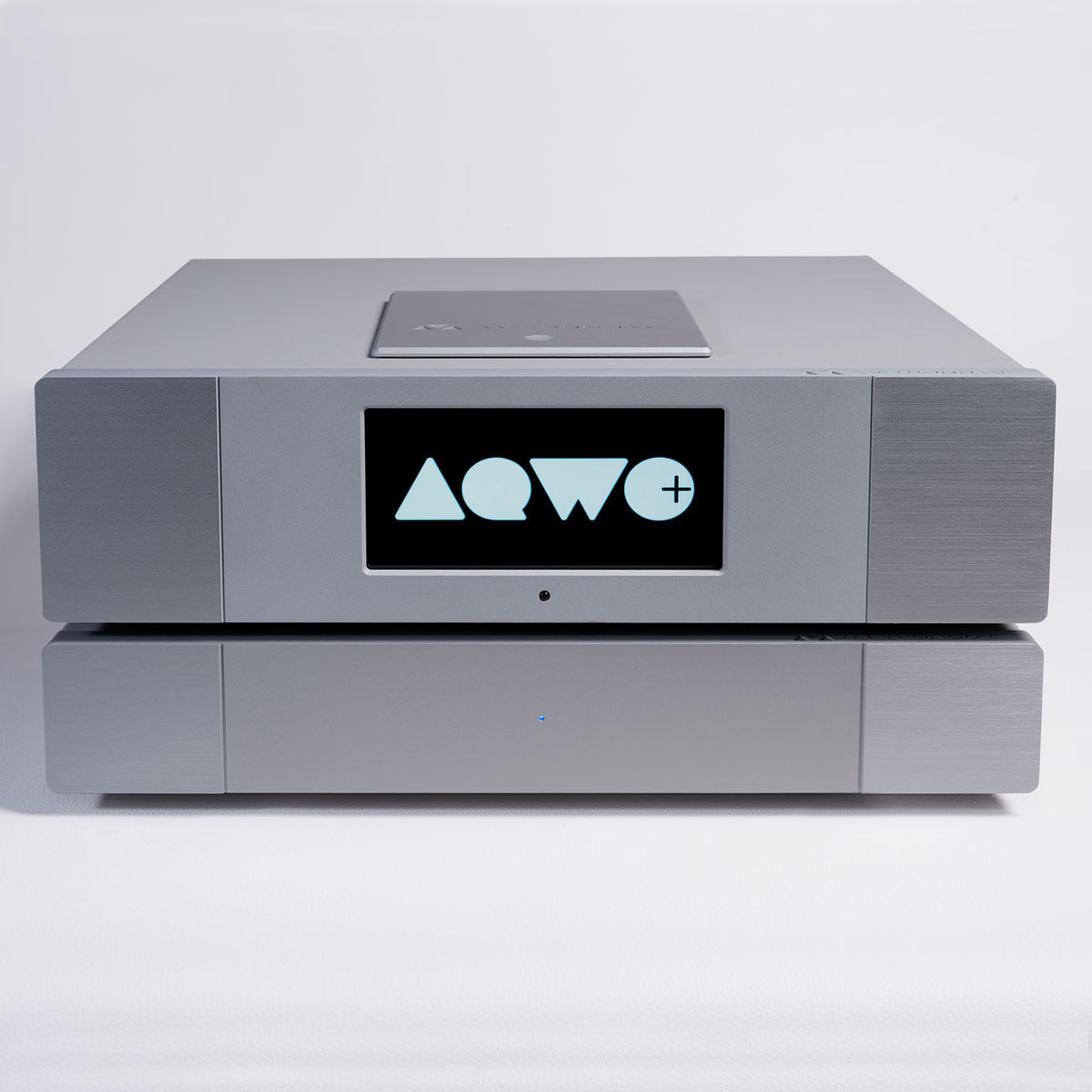

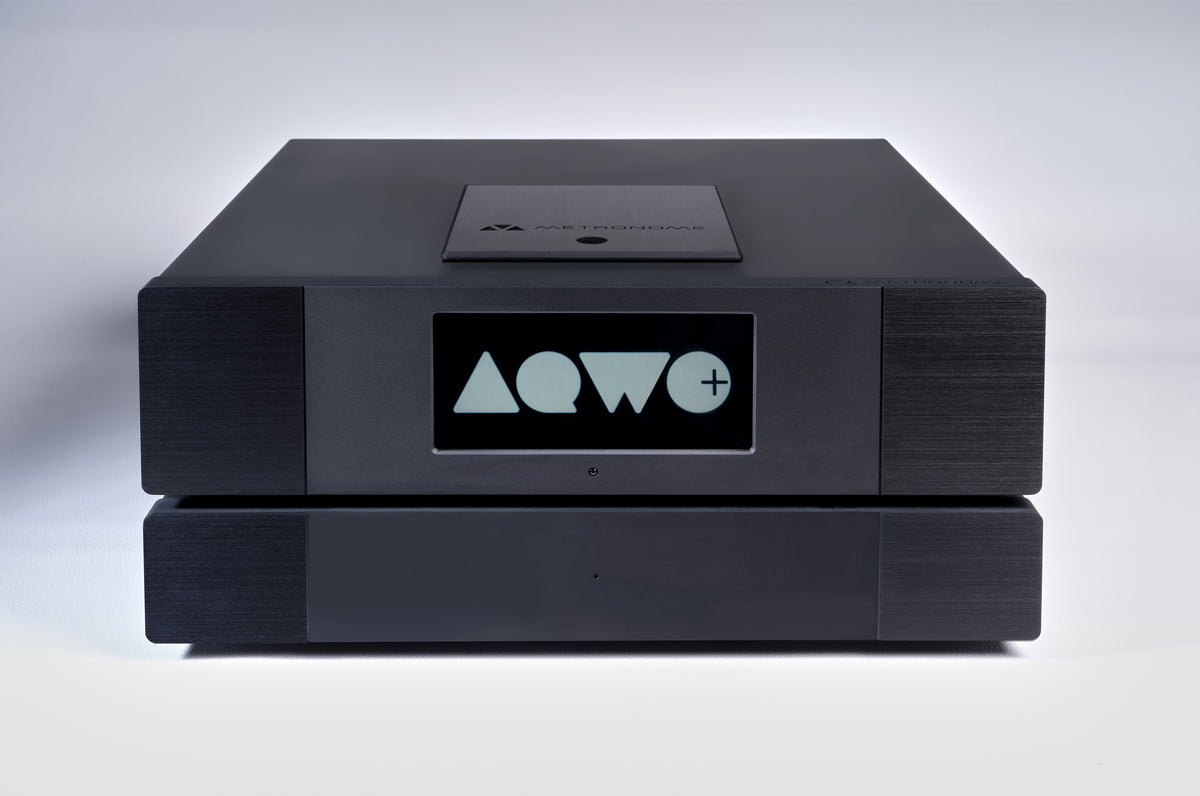

The power supply sits in its own chassis, matching the drive unit in width and depth but only 85 mm tall, and it is isolated from the audio functions. The AQWO 2+ is available in silver or black.

Converter and Digital Stage

Conversion is handled by an ES9039MPRO, and the unit accepts PCM and DSD up to DSD512 for conversion. USB accepts native DSD512, while the internal streamer delivers native DSD up to DSD256. S/PDIF, AES/EBU, Toslink and USB inputs let the converter serve other sources in the system.

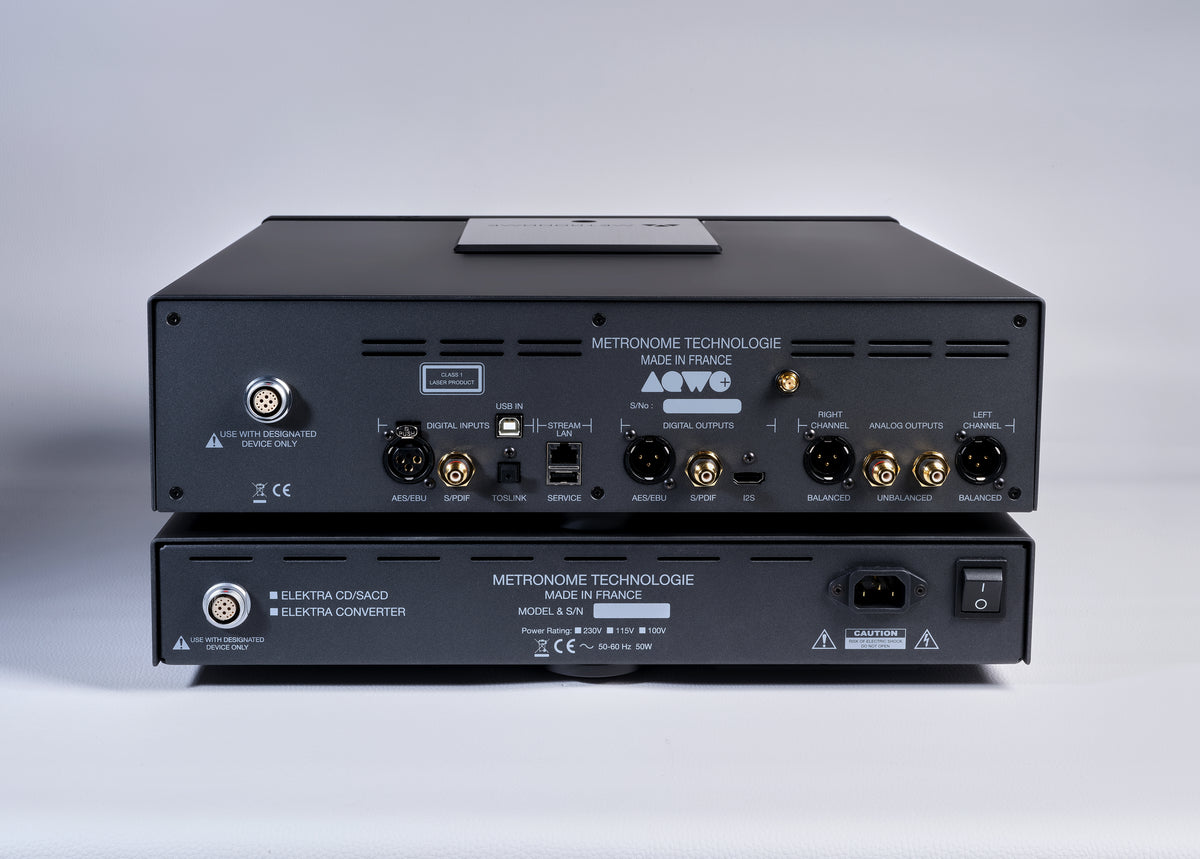

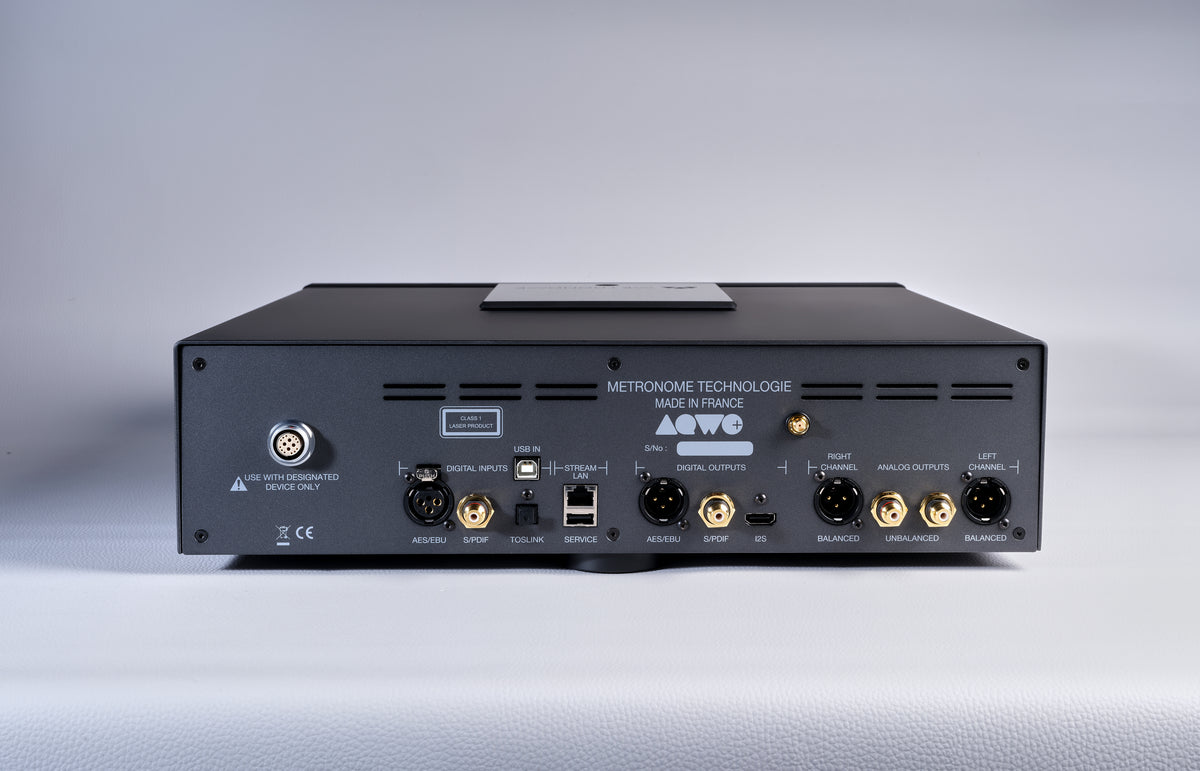

The digital outputs offer resampling and include I²S over HDMI, AES/EBU and S/PDIF, so the AQWO 2+ can also act as a transport for an outboard DAC. I²S is the only output that carries native DSD256.

Optional Tube Output

A tube output stage can be fitted when the unit is ordered or added later. RCA and XLR outputs are provided.

Streaming and Integration

The AQWO 2+ is Roon Ready and certified for Audirvāna, and it carries JPLAY certification. Qobuz Connect, TIDAL Connect and Spotify Connect are supported along with Deezer, vTuner and DLNA/UPnP, and an MQA renderer handles MQA content. Network access is by Gigabit Ethernet or dual-band Wi-Fi, and a USB port accepts external storage for local libraries.

Display

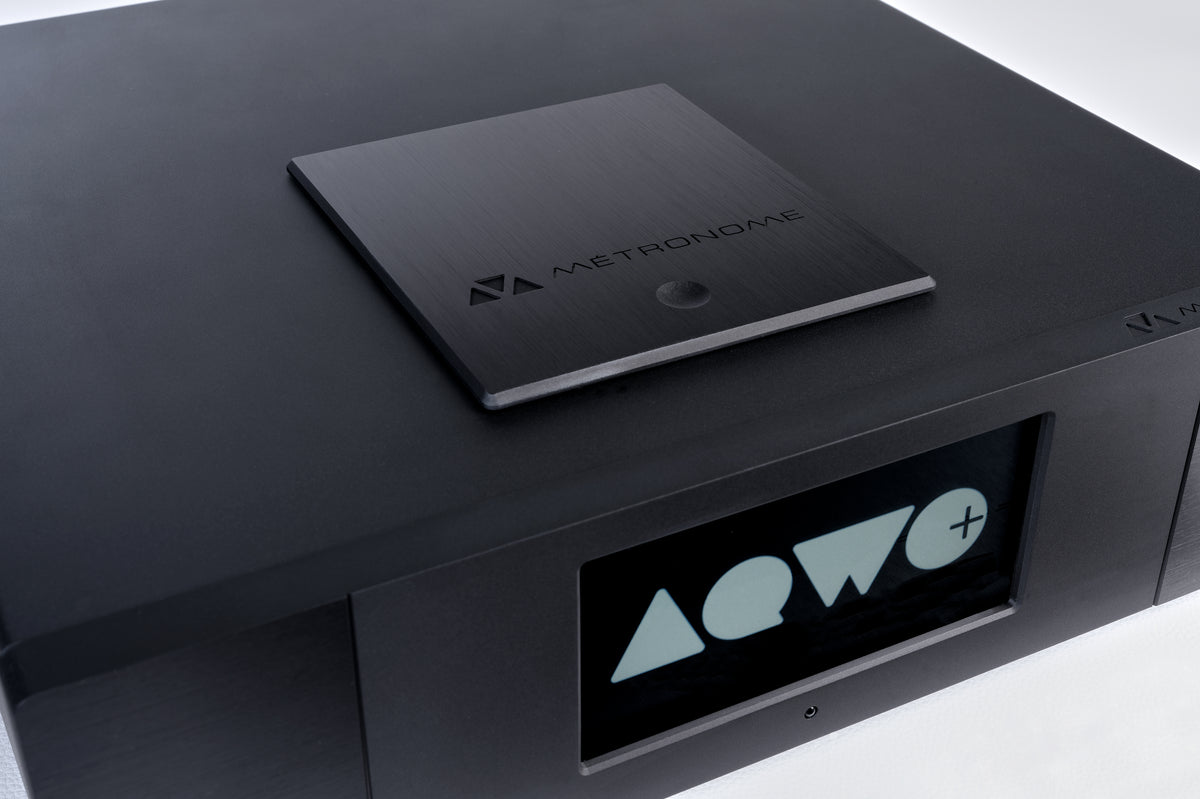

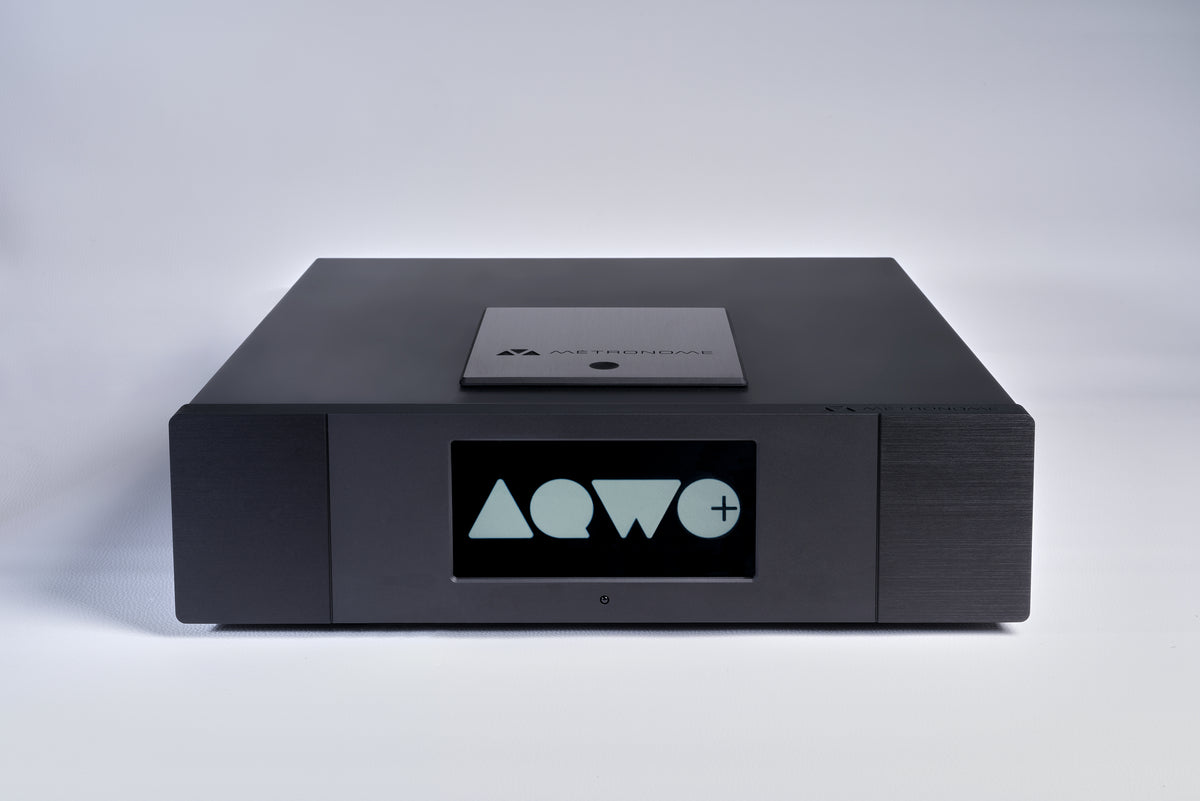

A 7-inch touchscreen carries playback information and the unit's settings. Firmware updates are installed through the USB port.

Place in the AQWO Range

The AQWO 2 is the single-box version of this unit, with the power supply inside the chassis. The AQWO 2+ keeps the all-in-one approach and adds the external supply. For owners who prefer separate components, the t|AQWO 2 provides the SACD/CD transport and the c|AQWO 2 the DAC, each with its own separate power supply.

Métronome AQWO Range Comparison
Specification	AQWO 2	AQWO 2+	t\|AQWO 2	c\|AQWO 2
Type	Hybrid DAC, SACD/CD player and streamer	Hybrid DAC, SACD/CD player and streamer	SACD/CD transport	DSD digital-to-analog converter
Power Supply	Internal (single-box design)	External power supply (2-box design)	External power supply (2-box design)	External power supply (2-box design)
Disc Playback	CD (44.1 kHz / 16-bit); SACD (DSD64 native)	CD (44.1 kHz / 16-bit); SACD (DSD64 native)	CD (44.1 kHz / 16-bit); SACD (DSD64 native)	None
DAC Chip	ESS ES9039MPRO (High-End range)	ESS ES9039MPRO (High-End range)	None	Two conversion lines: AKM AK4499EX and ESS ES9039MPRO (High-End range)
THD+N	-122 dB	-122 dB	Not applicable	AKM -124 dB; ESS -122 dB
Dynamic Range (S/N)	137 dB	137 dB	Not applicable	AKM 135 dB; ESS 137 dB
Tube Stage	Optional tube output	Optional tube output	Not applicable	Optional tube output
Analog Outputs	RCA (100 Ω, 3 V max); XLR (150 Ω, 3 V max)	RCA (100 Ω, 3 V max); XLR (150 Ω, 3 V max)	None	RCA (100 Ω, 3 V max); XLR (150 Ω, 3 V max)
Digital Inputs	S/PDIF, AES/EBU, Toslink, USB, streaming	S/PDIF, AES/EBU, Toslink, USB, streaming	None	I²S (x2), S/PDIF, AES/EBU, Toslink, USB, streaming (option)
Digital Outputs	S/PDIF, AES/EBU, I²S (resampling available)	S/PDIF, AES/EBU, I²S (resampling available)	S/PDIF, AES/EBU, I²S (resampling available)	None
Streaming	Built in	Built in	Optional upgrade	Optional upgrade
Max DSD, USB Input	DSD512 native	DSD512 native	Not applicable	DSD512 native
Max DSD, Streaming	DSD256 native	DSD256 native	DSD256 native (with streaming option)	DSD256 native (with streaming option)
Max DSD, I²S	DSD256 native (output)	DSD256 native (output)	DSD256 native (output)	DSD256 native (inputs)
DSD over S/PDIF and AES/EBU	DSD128 via DoP	DSD128 via DoP	DSD128 via DoP (outputs)	DSD128 via DoP (inputs)
Max PCM	44.1 to 384 kHz / 32-bit	44.1 to 384 kHz / 32-bit	44.1 to 384 kHz / 32-bit	44.1 to 384 kHz / 32-bit
MQA	Renderer, 44.1 to 384 kHz / 32-bit	Renderer, 44.1 to 384 kHz / 32-bit	Renderer, 44.1 to 384 kHz / 32-bit (with streaming option)	Renderer, 44.1 to 384 kHz / 32-bit (with streaming option)
Roon Ready	Yes	Yes	Yes (with streaming option)	Yes (with streaming option)
Streaming Protocols	DLNA/UPnP, Audirvāna, Spotify Connect, Roon Ready, Deezer, TIDAL Connect, Qobuz Connect, vTuner	DLNA/UPnP, Audirvāna, Spotify Connect, Roon Ready, Deezer, TIDAL Connect, Qobuz Connect, vTuner	DLNA/UPnP, Audirvāna, Spotify Connect, Roon Ready, Deezer, TIDAL Connect, Qobuz Connect, vTuner (with streaming option)	DLNA/UPnP, Audirvāna, Spotify Connect, Roon Ready, Deezer, TIDAL Connect, Qobuz Connect, vTuner (with streaming option)
Network	Dual-band Wi-Fi (2.4 and 5 GHz); 1 x Gigabit Ethernet	Dual-band Wi-Fi (2.4 and 5 GHz); 1 x Gigabit Ethernet	Dual-band Wi-Fi (2.4 and 5 GHz); 1 x Gigabit Ethernet (with streaming option)	Dual-band Wi-Fi (2.4 and 5 GHz); 1 x Gigabit Ethernet (with streaming option)
USB Port	1 x USB 2.0 (device update); 1 x USB 2.0 (external storage)	1 x USB 2.0 (device update); 1 x USB 2.0 (external storage)	1 x USB 2.0 (device update); 1 x USB 2.0 (external storage, with streaming option)	1 x USB 2.0 (device update); 1 x USB 2.0 (external storage, with streaming option)
Display	7-inch touchscreen, 1024 x 600	7-inch touchscreen, 1024 x 600	7-inch touchscreen, 1024 x 600	7-inch touchscreen, 1024 x 600
Power Consumption	40 W	48 W	45 W	65 W
Standby Power Consumption	32 W	34 W	26 W	45 W
Dimensions (L x H x W)	420 x 120 x 425 mm	Drive: 420 x 120 x 425 mm; PSU: 420 x 85 x 425 mm	Drive: 420 x 120 x 425 mm; PSU: 420 x 85 x 425 mm	Drive: 420 x 120 x 425 mm; PSU: 420 x 85 x 425 mm
Weight	15 kg	Drive: 13.3 kg; PSU: 12.6 kg	Drive: 12.9 kg; PSU: 11.2 kg	Drive: 11.6 kg; PSU: 12.8 kg
Finishes	Silver, Black	Silver, Black	Silver, Black	Silver, Black
