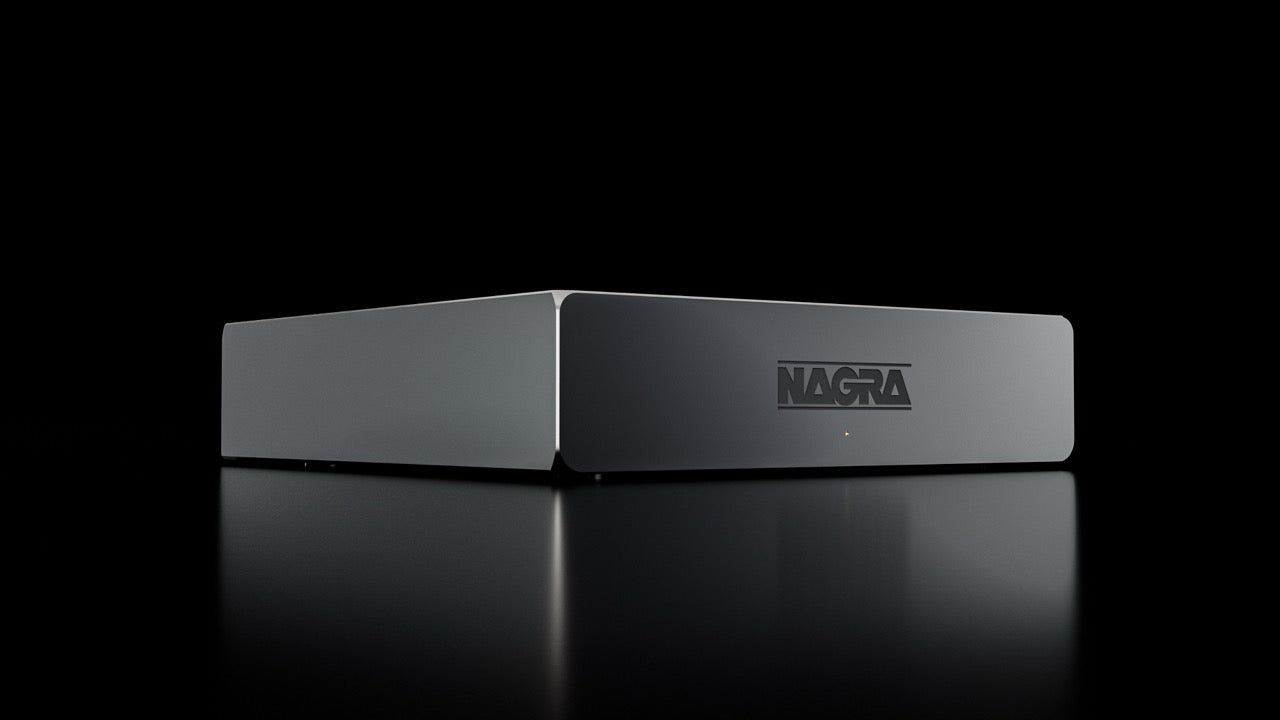

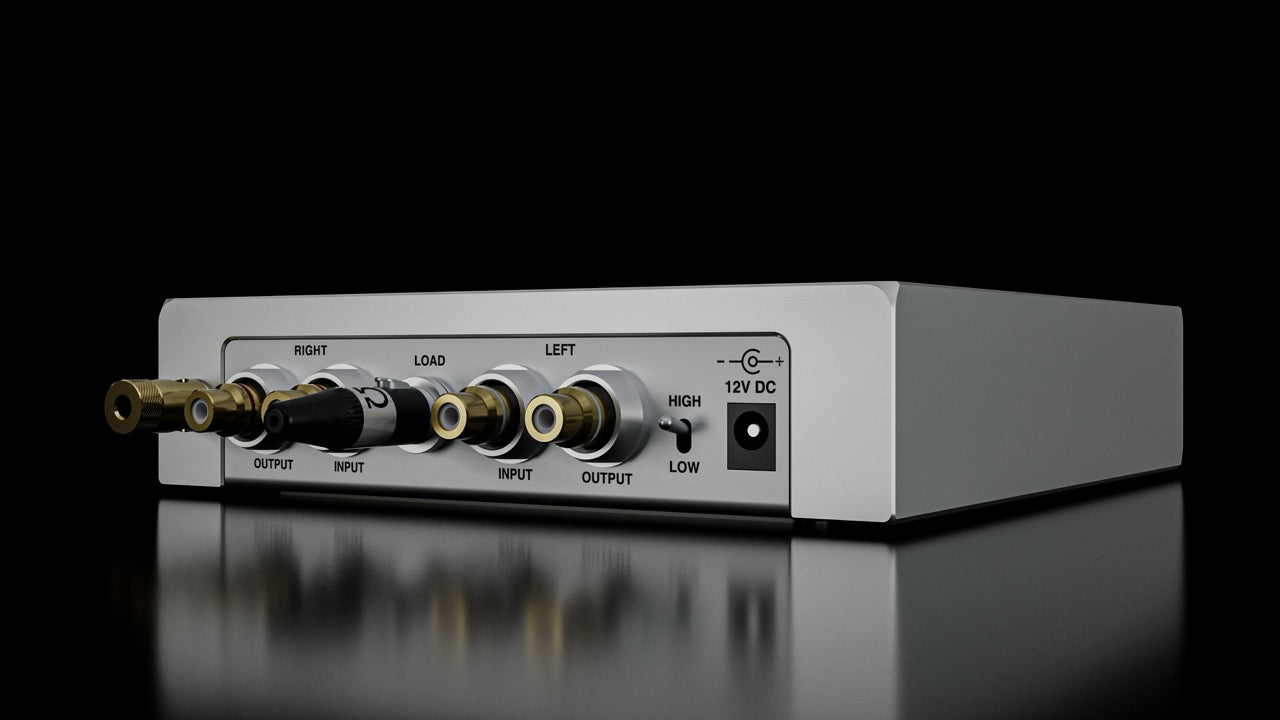

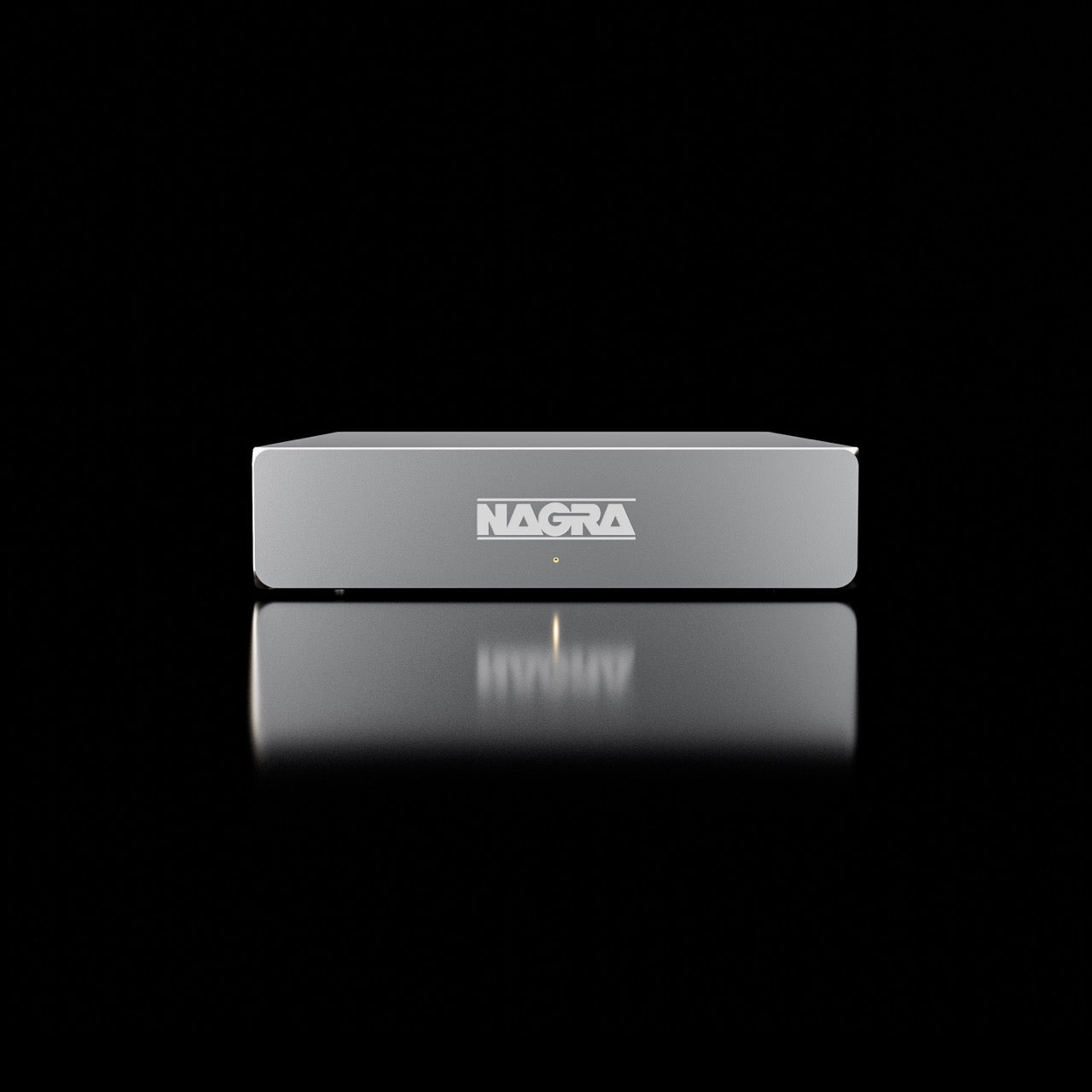

Nagra Compact Phono Stage MC

Regular price: $5,950.00 USD
Regular price
Sale price: $5,950.00 USD

Free shipping

Hear it at our studio

Description

The Nagra Compact Phono is a high-performance MC phono stage with a vibration-controlled aluminum chassis. It offers 62/47.5 dB selectable gain, 100-ohm standard loading, and RIAA EQ. Features include Class A operation, dual-mono layout, all-discrete components, and ultra-low noise power regulation. Frequency response: 20 Hz–50 kHz ±1 dB. THD+N <0.1%, SNR >80 dB.

Specifications

Frequency response: 20 – 50 kHz +/- 1 dB (within RIAA curve)
Signal to noise ratio*: > 80 dB
THD+N: < 0.1 % with lab power supply
Crosstalk*: > 85 dB
Output impedance*: < 10 Ω
Weight and dimensions: 1.9 kg (4.1 lb.) 185 x 166 x 41 mm / 7.2 x 6.5 x 1.6 inches

* Specs on 47.5 dB gain position

Nagra Compact Phono MC Phono Stage

Phono reproduction was at the heart of Nagra's very first hi-fi product, the Nagra PL-P. Inspired by the legendary microphone preamplifier in the Nagra IV-S reel-to-reel tape recorder, the phono section of the PL-P received worldwide acclaim.

Since then, the phono section has evolved through the Nagra VPS, BPS, Classic Phono, and most recently, the HD Phono. While each version uses different technologies and components, all remain faithful to the original design, centered around a Nagra-made step-up transformer.

The latest evolution is the Compact Phono. It shares the same chassis as the Nagra Streamer, with a solid, vibration-resistant construction. Despite its compact size, no compromises were made in sound quality. The settings have been simplified, and signal paths shortened to achieve exceptional performance at a fraction of the cost of competing products.

Features of the Nagra Compact Phono

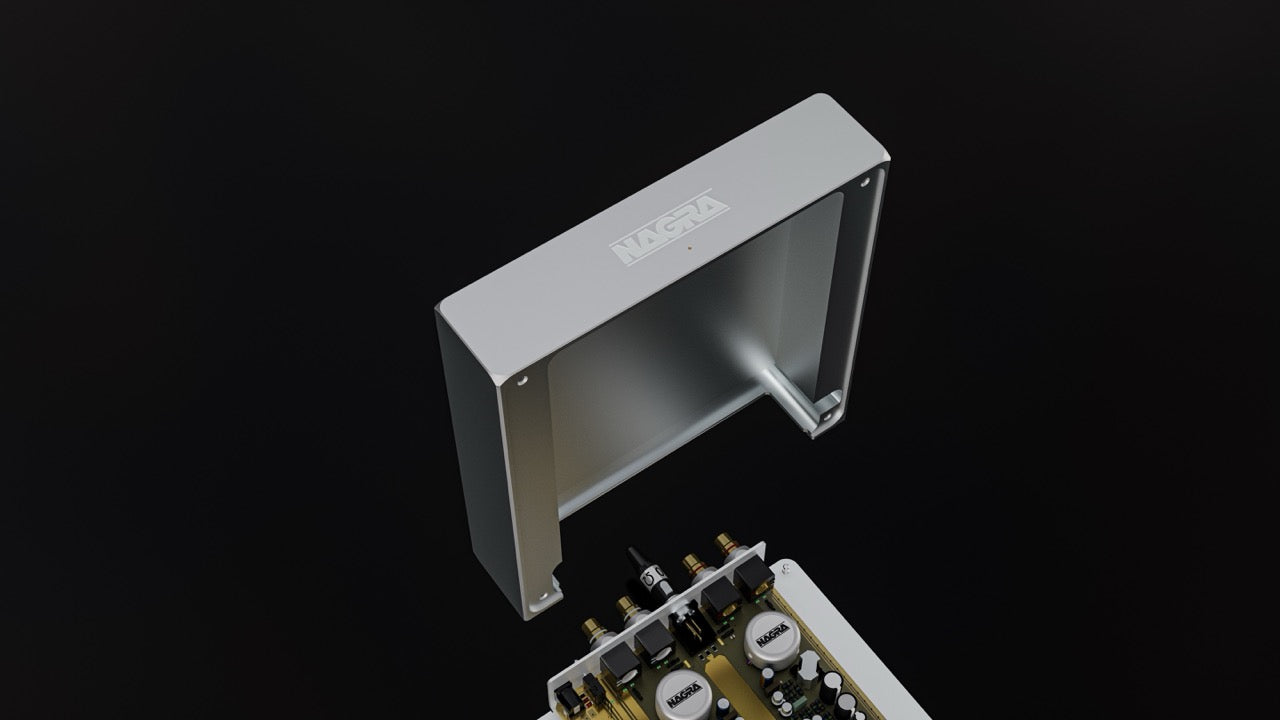

Vibration-controlled housing machined from a solid aluminum block
MC input using a 10 dB step-up transformer, identical to the one in the Nagra VPS
Selected transistors operating in Class A
Fully discrete component topology
Dual-mono layout
Selectable gain of 62 or 47.5 dB
RIAA equalization
100 ohm load (other values available from Nagra dealers)
External 12V DC power supply
Internal power supply with ultra-high rejection ratio regulators and dual-stage filtering

The Compact Phono can be upgraded for even higher performance using either the Nagra MPS or Classic PSU power supplies. A Lemo to DC cable is required for this upgrade.

To further reduce vibrations, it can be placed on a VFS platform or on the upcoming Compact VFS, currently in development.

The Nagra turntable and cartridge system set a new benchmark that influenced the development of both the HD Phono and now the Compact Phono. While the Compact Phono’s modest size and pricing may suggest otherwise, it is a highly ambitious product and proudly carries the Nagra logo on its front panel.
